ref: DJV446  ALINCO DJ-V446. Free use, without licence handheld. PMR 446.

This handheld is the last model by Alinco.

Its waterproof casing, turns it into the ideal handheld for outdoor activities with bad weather!
For short communications, without call costs, those handhelds are the perfect option!

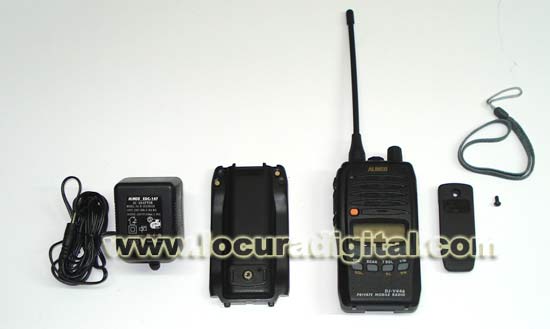

It includes:

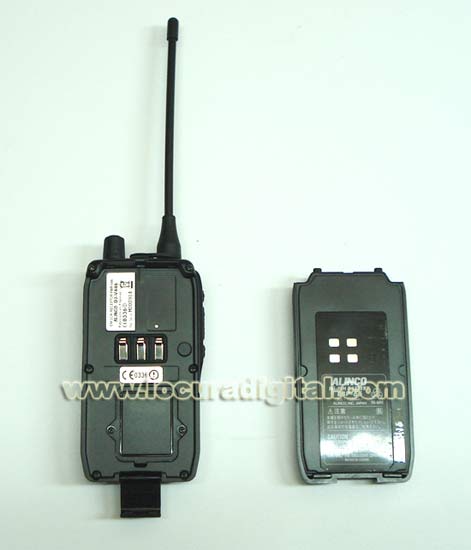

- Rechargeable NI-MH battery EBP-65 (7.2V / 700 mAh)

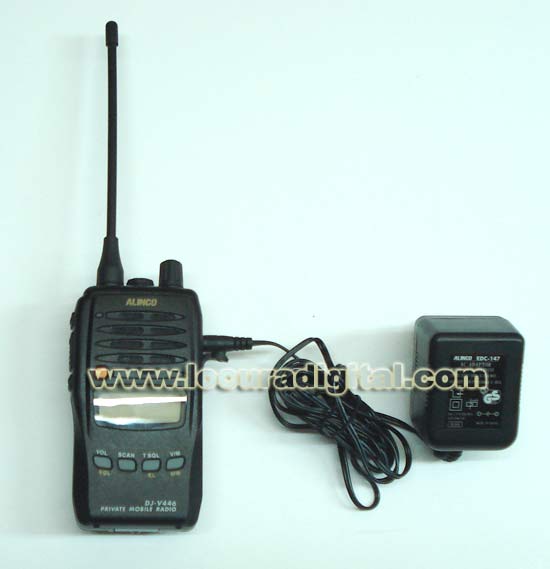

- Wall charger EDC-147
- Belt clip
- Wrist strap
- Instructions manual

MAIN FEATURES

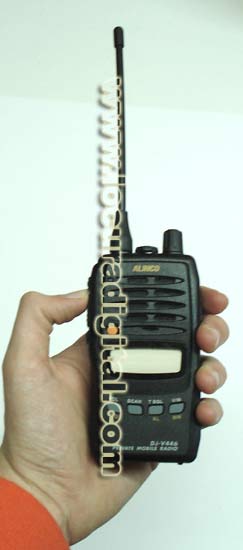

- Compact design
- Long life battery
- 39 CTCSS tones
- TOT function (channel's occupation limiter)
- Alphanumeric display
- Battery saving function
- Battery regeneration function for rechargeable battery
- Protection against humidity and splashes
- Cloning function

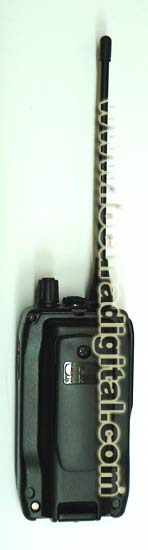

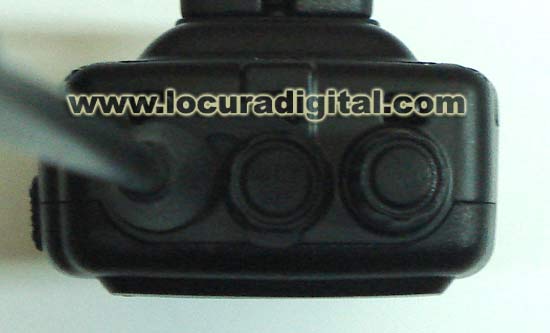

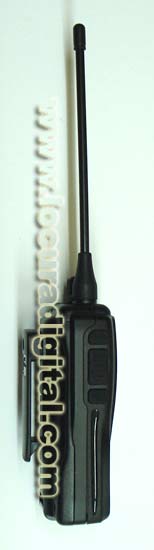

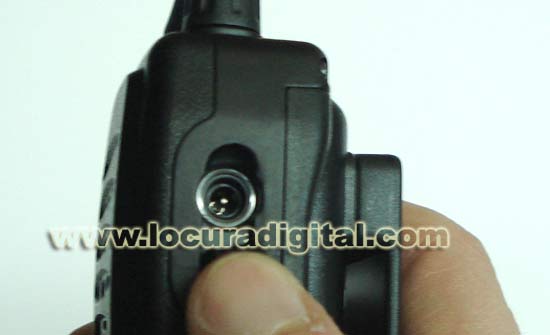

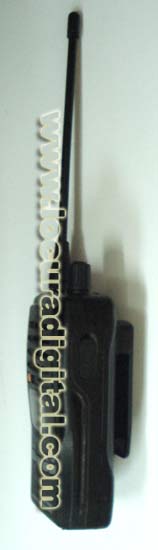

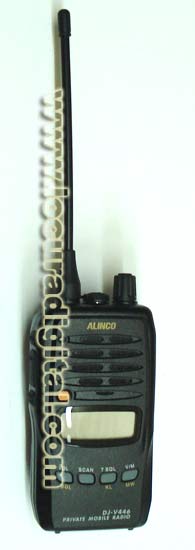

Select the image you want to view

GENERAL

- Frequency range: 446.00625 MHz - 446.09375 MHz
- Modulation: 8K50F3E (FM)
- Antenna type: built-in
- Frequency stability: ±2.5 ppm
- Micropnone impedance: 2 k
- Battery: 7.2 Vdc / 700 mAh (EBP-65)
- Supply: 7 Vdc - 16 Vdc
- Consumption: 600 mA during transmission
                    250 mA during reception
                    70 mA during standby
                    26 mA during battery saving
- Working temperature: - 10°C to 55°C
- Working cycle: 3-3-54 minutes (Tx-Rx-standby)

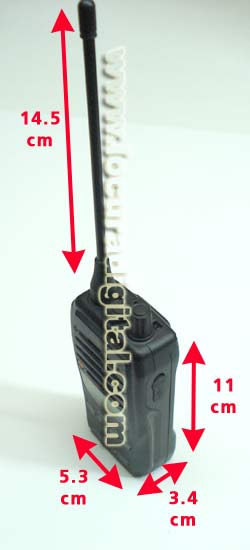

- Dimensions (approx.): 110 mm (height) x 58 mm (width) x 36.4 mm (depth)
- Weight (approx.): 280 gr. (with EBP-65 battery)

TRANSMITTER

- Output power (P.RA): 500 mW (maximum)
- Modulation: Variable reactance
- Maximum deviation: ±2.5 kHz
- Spurious emission: <0.25 W

RECEIVER

- Receiver type: Double conversion superheterodine
- Intermediate frequencies: 1st FI: 38.85 MHz
                                             2nd FI: 450 kHz
- Sensibility: <= 6 dB V F.E.M. (20 dB SINAD)
- Selectivity: >= 60 dB
- Parasite radiations: <= 2 nW
- Audio output: 400 mW (8 , 10% distorsion)
