 ALAN MIDLAND G12 |
 |
|
|
The MIDLAND G12 it's a PROFESSIONAL portable transceiver with a superior reliability and robustness, that turns it the ideal radio for using it at work or during free time. The applications are infinite: construction, department stores, hotels, theatres, fairs, discotheques, etc. besides hiking, sports, communications between vehicles and many others. With the MIDLAND G12 you can communicate in all the channels from the PMR446 band using lots of functions.
|
| |
 DESCRIPTION |
Portable pmr446 PROFESSIONAL transceiver
The MIDLAND G12 it's a PROFESSIONAL portable transceiver with a superior reliability and robustness, that turns it the ideal radio for using it at work or during free time. The applications are infinite: construction, department stores, hotels, theatres, fairs, discotheques, etc. besides hiking, sports, communications between vehicles and many others. With the MIDLAND G12 you can communicate in all the channels from the PMR446 band using lots of functions.
It also works with normal batteries.
|
|
| IMAGES |
Select the image you want to view
|
| FEATURES |
| Channels |
8 PMR446 bands + 8 programmable with CTCSS tones |
| Frequency generation |
PLL |
| Frequencies |
446,00625 - 446,09375 |
| Supply |

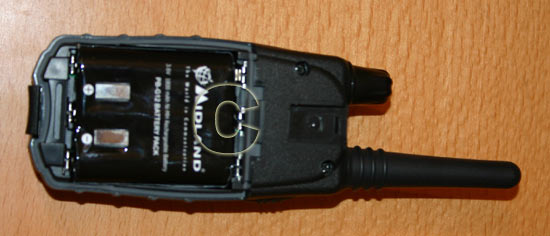

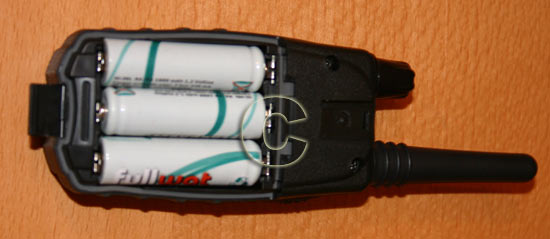

from 3,6 to 4,5 Vdc (3 AA alkaline or NiMH rechargeable batteries) |
| Working temperature |
from -20 to + 55ºC |

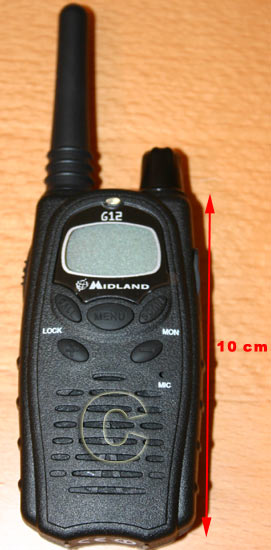

| Dimensions (antenna included) |
121 x 52 x 32 mm |
| Weight (Without batteries) |
115g |
| Transmitter |
|
| Output power |
High: 0,5W - Low: 10mW |
| Modulation |
FM |
| Spurious emissions |
Complying R&TTE rules |
| Sensibility @ 20dB Sinad |
> 0,5uV |
| Audio output power |
250 mW |
| Intermediate frequencies |
1st: 45,1 MH - 2nd: 445 KHz |

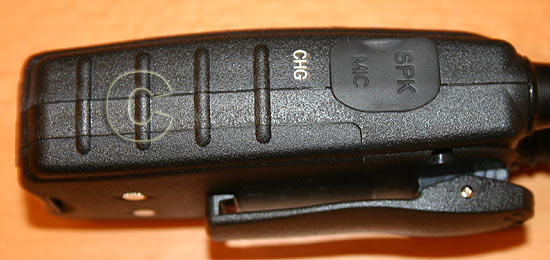

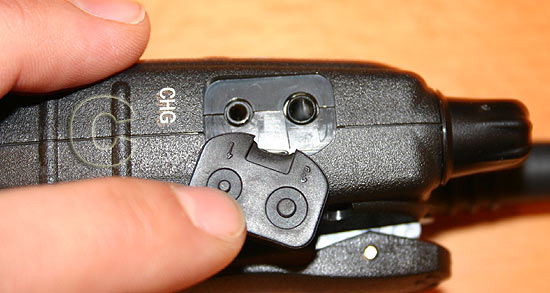

| External microphone and charging connector |
2,5 mm Stereo |
| External speaker connector |
3,5 mm Mono |
|
|
|
|
