ALAN K1
      ALAN K1
   · Description
   · Images
   · Features
   · Manual Alan K1 PDF

ALAN K-1 PMR446, incorporates some advanced functions that make it be over other existing radios, contributing also with a modern and reduced design, above all by its rubbery finish that allows holding it in a practical and firmly way.

  DESCRIPTION

The ALAN K-1 incorporates the last innovations and technical functions, as the VOX (hands free) with 6 levels of sensibility and the "Out of Range" that warns the user that the radio can not receive because it's out of range.

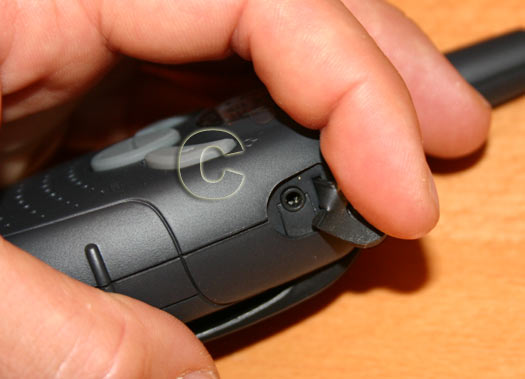

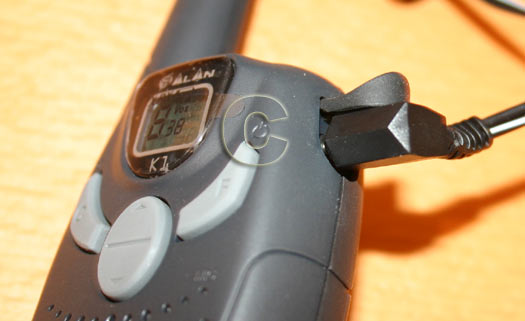

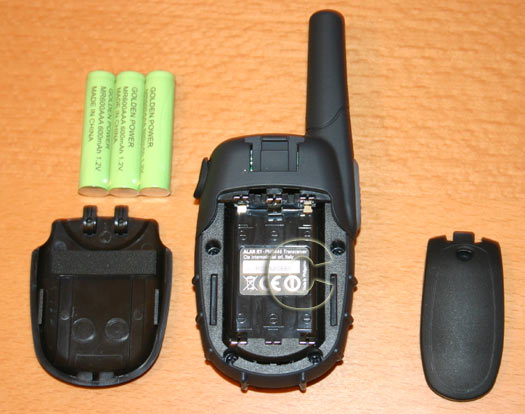

The ALAN K1 works with 3 AAA alkaline or Ni-Mh rechargeable batteries and can be used with all the Alan 1 pin accessories (2,5 mm stereo).
8 channels
20 memories for Baby Sitter function
38 CTCSS tones in TX and RX
LCD alphanumeric retro illuminated display
Keyboard lock
Out of Range function
Automatic battery saving

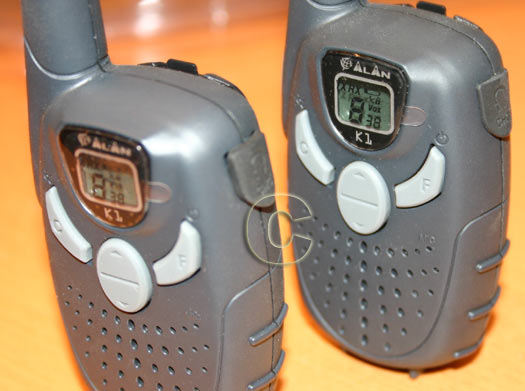

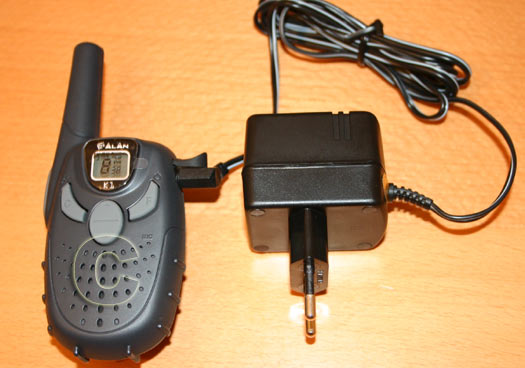

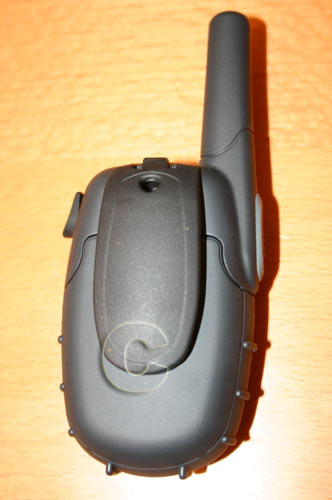

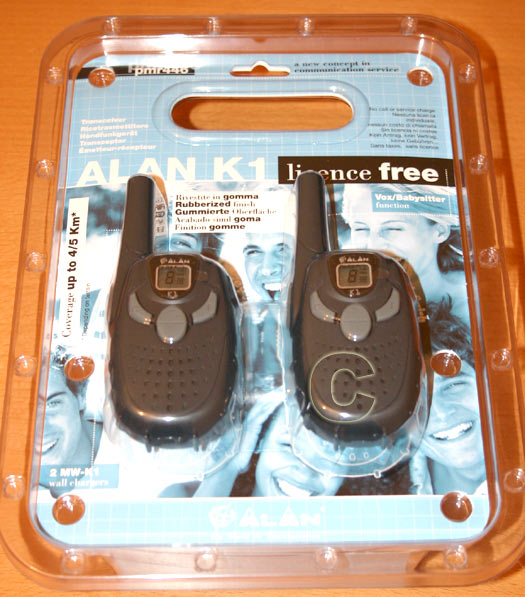

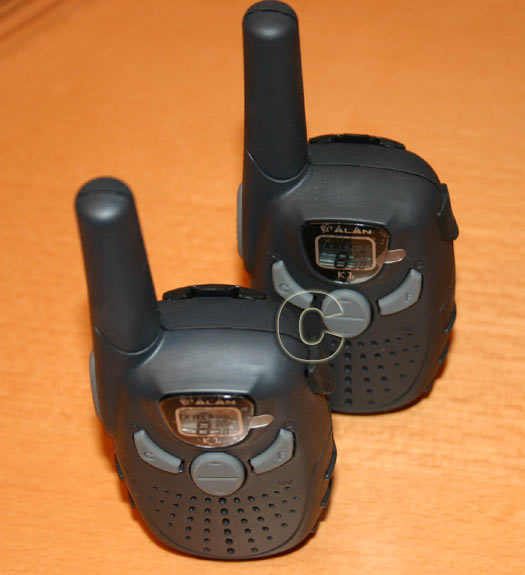

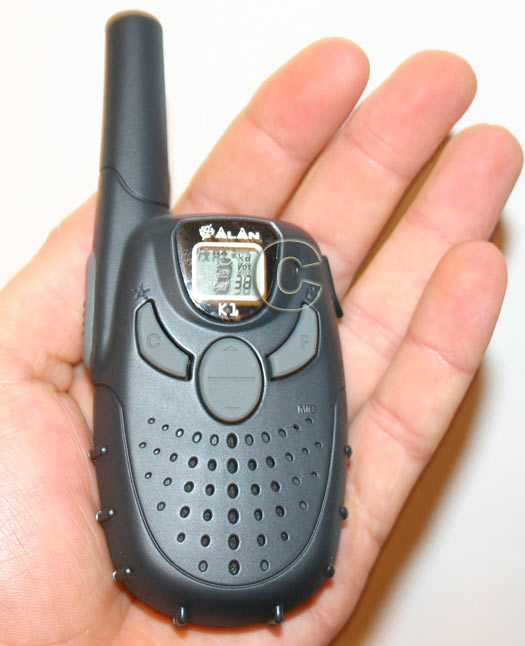

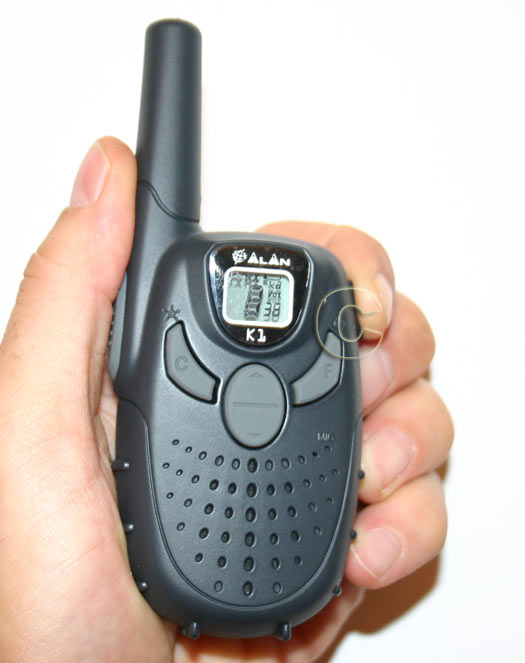

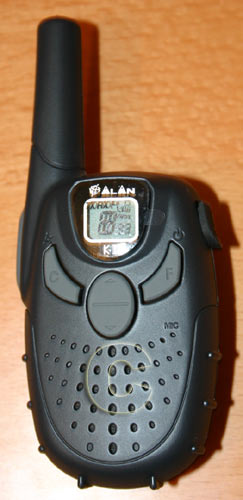

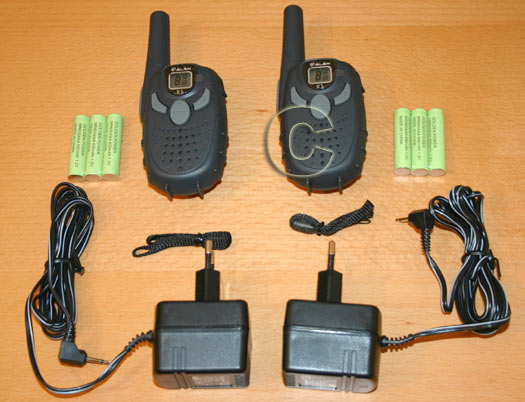

  IMAGES


Select the image you want to view





  FEATURES

 Frequencies 446.00625 : 446.09375 MHz
 Channels separation 12.5 KHz
 Channels 8
 Memories 20 additional memories for Babysitter (-b) and monitoring (E-)
 Tones 38 CTCSS tones
 Output power 500 mW ERP
 Range up to 4-5 Km
VOX function with 6 levels of sensibility

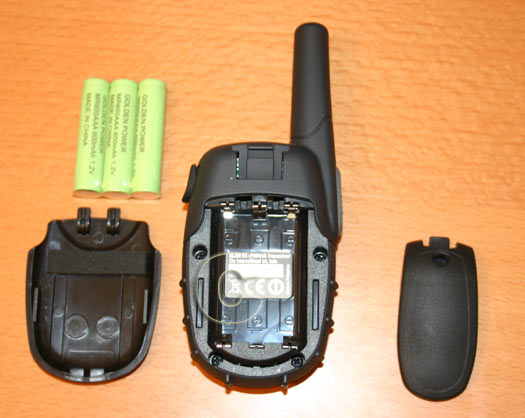

 Batteries 3 AAA alkaline or Ni-Mh rechargeable batteries
 Display LCD alphanumeric retro illuminated
 Battery life up to 30 hours (with alkaline batteries)
 Working temperature from -20º to +55º
 Weight 72 gr. (without batteries)
 Dimensions 83 x 50 x 27 mm
the functions and specifications are subject to change without prior warning.
